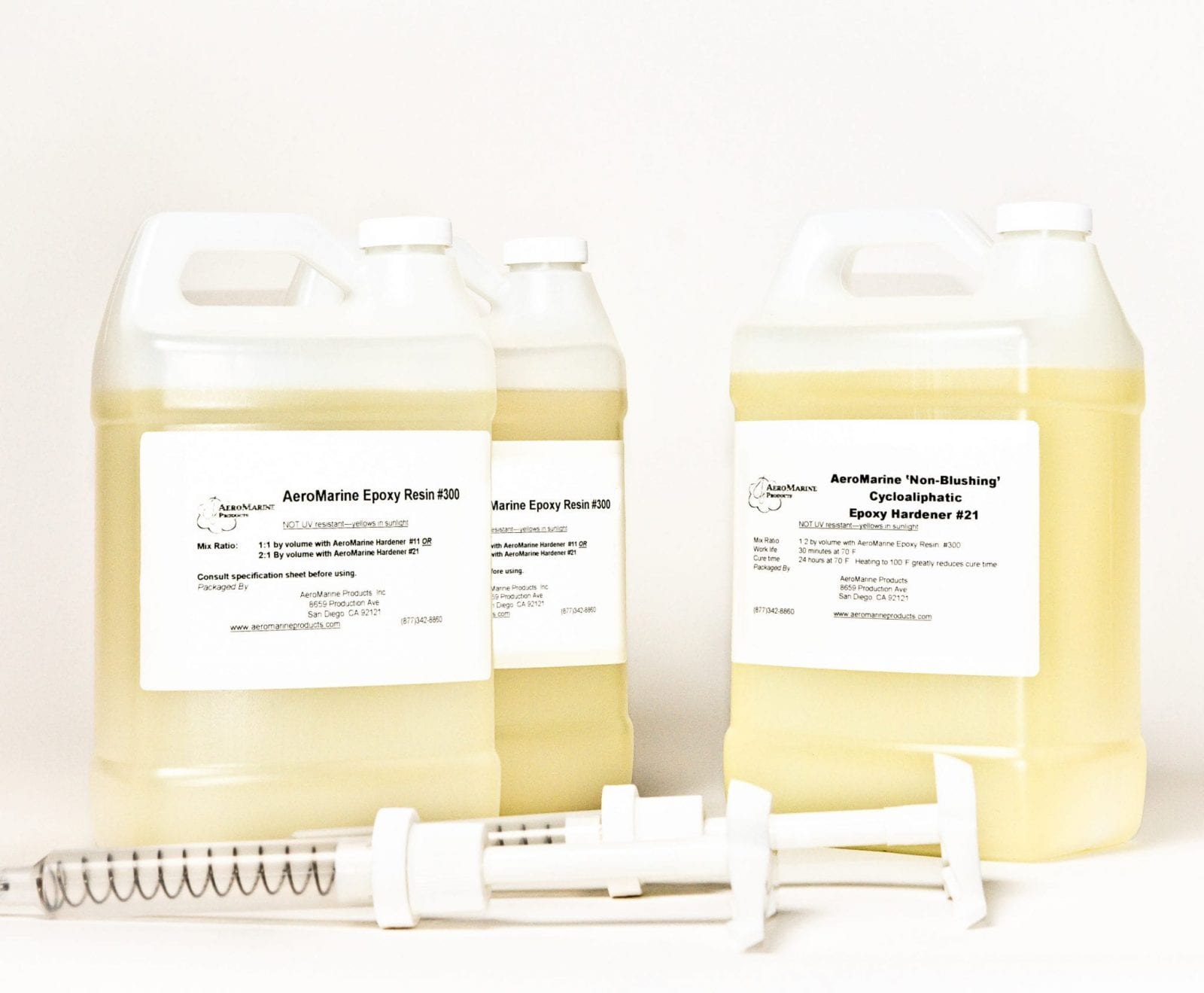

300/21 Laminating Epoxy Resin w/ Pumps – 3 Gallon Kit

Name: 300/21 Laminating Epoxy Resin w/ Pumps - 3 Gallon Kit
SKU: AM10640
Price: 352 USD
Availability: InStock

$352.00

Same Day Shipping: Orders Placed Before 2pm PT M-F

Canadian Customers click here for shipping details.

AeroMarine Products 300/21 epoxy resin is a clear, low viscosity cycloaliphatic epoxy system
Primarily used for laminating and coating.
It contains no VOCs and is relatively moisture insensitive.
This multifunctional epoxy is also used for pebble paving and for coating floors.
Automotive enthusiasts use AeroMarine Products 300/21 epoxy resin for laminating carbon fiber parts including hoods, dashes, etc.
It is cycloaliphatic or “non-blushing”, which means that it has no oily film or amine “blush” on it.
Simple 2:1 mix ratio
3 gallon kit (2 gallon resin, 1 gallon hardener); larger and smaller sizes available – metering pumps included

DESCRIPTION
HOW-TO
SHIPPING & RETURNS
PURCHASE NOW
TDS

PRODUCT DESCRIPTION

Features:

No amine blush
Excellent penetrating characteristic
Bonds well, strong and durable
Excellent gloss and clarity
Excellent chemical resistance
Self-leveling
No sanding between coats
NOT UV resistant; will yellow in sunlight
If using the colored version, you must turn the container upside down every 7 days to maintain color dispersion and shake the resin vigorously for 2 minutes before use

Common Uses:

Laminating boats and aircraft using fiberglass, carbon fiber, or Kevlar cloth
Building “stitch and glue” boats
Potting electronic assemblies

Potting specimens for measurement
Coating wood and concrete
Bonding wood, metal, concrete, and most plastics
Flooring
Pouring countertops, tabletops and bar tops

Specifications:

Mix Ratio: 2 parts Resin to 1 part Hardener by volume or weight
Mixed viscosity: 600cps
Color: Clear
Work life: 30 [email protected] (using at least 8 oz. resin and 4 oz. hardener)
Cure time: 24 [email protected] (using at least 8 oz. resin and 4 oz. hardener)
Shore D Hardness 80-85
Shear strength: 2500 psi
Tensile Strength 10,500 psi
Flexural strength: 17,500 psi
Modulus of elasticity: 5.7 x 10^6 psi

HOW-TO:

Mixing:

- Double Mix and Pour Method: Mix (2:1) 2 parts AeroMarine 300 Resin to 1 part AeroMarine 21 Hardener.
- Mix the two components together in a clean plastic container for 2 minutes, then transfer the mixture to another clean plastic container and mix them again for another 2 minutes.
- The theory is that the liquids clinging to the sides and bottom of the containers don’t get mixed well. By transferring the mixture to another clean container, you are assured that everything is well mixed.
- To avoid excess exotherm, mix small batches until you are familiar with using this material.
- DO Not mix the entire amount of resin and hardener together all at once. It will cure in your mixing container!
- If laminating with cloth, it is best to apply subsequent layers within 18 hours of each other.
- NEVER mix less than 4 ounces of resin and 2 ounces of hardener together—it will NOT cure! Also, this smaller quantity of mixed resin and hardener may take up to 4 times as long to cure (i.e. 96 hours instead of 24 hours to cure).

Tips:

300/21 epoxy resin stops curing at temperatures below 50F. If you bring the temperature above 50F, it will begin curing again
Never mix less than about 4 ounces of resin and 2 ounces of hardener. When manufacturers design and test their resins, they normally write the specifications for 100 gram batches, which is about 3 ounces. There are two bad things that can happen when mixing a smaller batch. If the sample is too small, it is much more difficult to get the mix ratio correct. These mixtures are exothermic, meaning that they generate heat in order to cure. A tiny batch does not generate enough heat to cure the resin properly.
Do not mix the entire amount of resin and hardener together at once. The larger the batch, the more exotherm or heat is generated in the cure cycle. If pouring a large table top, mix smaller batches to make the process more manageable. Thickness of the pour also affects the exotherm and cure speed. 3/8” is about the maximum thickness to pour at one time for most epoxies.
Don’t vary the mix ratio. Varying the mix ratio usually results in a mess. Too much hardener will cause the epoxy to turn to rubber. Too much resin will result in uncured sticky patches.
Do NOT add more hardener in order to speed up the cure time. More hardener ruins the mix ratio and makes the resin cure to rubber and stay that way!
Use either a heat gun (NOT a blow dryer) or a floor heater to hasten the cure time.
Mix and pour everything twice. Please see Double Mix and Pour instructions above.

Mix in plastic containers.

Avoid mixing with drill motors. Drill motors don’t get into every corner of the mixing container. Drills spin too fast, they can generate friction in the resin causing it to exotherm out of control resulting in premature curing. Powered mixing can generate a lot of air bubbles which will result in a lot of extra work in the end.
Applying multiple coats. You can apply multiple coats of 300/21 epoxy if you wait about 12 hours (at 70F) between coats. See Priming Wood for Bartop or Tabletop Coating for more information.
Storage- Epoxy resins, tend to freeze even at fairly high temperatures, 70F. If allowed to freeze, “epoxy ice” can form in the container. It usually looks like swirls of white stuff suspended in the resin. It can be reconstituted by warming at 120F for a couple of hours. Using frozen epoxy can cause areas of uncured epoxy as the “epoxy ice” will defrost in the heat generated by the exotherm.
Polishing -You can buff out the AeroMarine 300/21 epoxy once it has cured for 7 days. You have 2 options for buffing/polishing the cured epoxy.
- - 1. Use 2000 grit sandpaper (from an auto supply shop) and wet sand
    the epoxy.
  - 2. You can wet sand the 300/21 epoxy and then use Novus polish (from places like Home Depot and/or The Container Store) to buff it out.

Additional Product Details:

Spraying- Do NOT Spray! Our epoxies are not made for spray applications.
Clean-up- We use aerosol carburetor cleaner to clean up spills and messes. We suggest using acetone, toluene, xylene, and lacquer thinner for your tools. Avoid regular paint thinner (mineral spirits).
To clean hands, use a pumice hand cleaner often available in automotive supply stores.
Thinning- Thinning is not recommended for most applications. There are very few exceptions. The most acceptable use of a thinner is using epoxy to penetrate wood. In this case, no more than 10% is a good amount of thinner to use. Remember, thinners are flammable, so spread the epoxy promptly after thinning to keep the exothermic heat from building up. Use the same thinners listed in the Clean-up section above.
Test- Always make a test to determine the feasibility of your process. There are many unforeseen factors that can affect the outcome of your project. Running a controlled test may be inconvenient, but it can make the “Learning Curve” of processing these products much easier.
Priming Wood for Bartop or Tabletop Coating- There are many good reasons to apply a prime coat of epoxy to your wood before the flood coat. The primary reason is to seal the wood to prevent bubbles in the flood coat. If the wood is old or distressed, has voids in the grain, is laminated like butcher block, or if the edge treatment has a seam with a paper thin gap, then the epoxy will find those openings and slowly seep into them. The result is that after you remove all the bubbles with the heat gun, new bubbles will slowly form. Because there are so many types of wood in so many different conditions, we recommend always applying a prime coat first.
- To apply a prime coat, mix the hardener and resin together and apply a thin coat to the raw wood with a brush or roller. If there are no large voids and you only need to seal the
  wood grain, then you can rub on the mixed epoxy with a cloth. The key is to apply a thin coat that does not have enough depth to create bubbles, but is thick enough to fill and seal any gaps. After this coat cures (usually overnight), you can then apply a flood coat with much higher confidence that the only bubbles you will have are bubbles that were introduced during mixing.

Technical Data Sheets (TDS)

Download

SHIPPING AND RETURNS

Shipping
Via UPS Ground

Returns
We only accept returns of unopened and unused product. Customer must return product within 30 days of receipt. Customer must contact us before returning a product. Customer pays for return shipping. All returns are charged a 15% restocking fee.

**shipping estimates may vary based on product selection and destination and a tracking code will be sent after checkout.

Canadian Customers**

If you are ordering from Canada, additional shipping rates and fees may apply. Please contact one of our representatives for more information. Contact us today!
